M-3 Mosquito Trap
Effectively reduce or eliminate biting insects indoors or outdoors.
The Model M3 Mosquito Trap without chemicals being added to the environment or the surrounding areas of usage. Protect your house from flying insects without the
use of pesticides or noisy zappers.


Product Description
UV fluorescent bulbs produce warm light to attract insects to the M3 mosquito trap.
The TiOe collected and trapped into the retaining cage, where the insects expire naturally.

Unlike other mosquito control solutions, the M3 Mosquito Trap has no "popping"
sound to disturb your outdoor enjoyment. Simply hang the M3 Mosquito Trap, and mosquitoes stay away. Perfect to use in your backyards, barn, patio areas, gardens, porch and near swimming pools.

Features
PATENTED 3-WAY INSECT CONTROL
- titanium dioxide exclusive coated funnel produces CO2 which is irresistible
to mosquitoes, luring the insects to the powerful yet whisper quiet vacuum fan. Insects are collected and trapped into the retaining cage, where the insects expire naturally.

Unlike other mosquito control solutions, the M3 Mosquito Trap has no "popping"
sound to disturb your outdoor enjoyment. Simply hang the M3 Mosquito Trap, and mosquitoes stay away. Perfect to use in your backyards, barn, patio areas, gardens, porch and near swimming pools.

Features
PATENTED 3-WAY INSECT CONTROL
Safe for indoor and outdoor use
No expensive attractant refill or propane necessary
Lightweight and easy to install
Low maintenance
Whisper-quiet operation
Pesticide and odor free
Provides up to 1/2 acre coverage for pest control
Durable all-weather construction

Power Requirements: AC110V 60HZ, AC 220V 50HZ, 12V DC
Power consumption: 26W
Dimensions: 12 1/2" High - 10" Diameter
Area of application: 1/2 acre
UV lamp:T5 2x4W; G24 PLC 1x7W
UV Lamp lifetime: approx. 3000 hours
Approvals: CE/ROHS/ETL
Power Cord: 2.2 meter
Warranty: One year manufacturer warranty



Packaging
Inner carton Size: 25 cm×25cm X 32.5cm
6 PCS per outer carton
Outer carton size: 77cm ×52cm ×34cm
Outer carton volume: 0.136cbm
Outer carton G.W.: 13.5kg
20 FT container quantity: 1188 pcs
40 FT container quantity: 2376pcs
40 FT HQ container quantity: 2988pcs




12V DC Operated Mosquito Trap



Photocell Sensor
Photocell-Activates unit automatically turns on at dusk and off at dawn.





Photocell Sensor Model M3 has 2 settings-24 hour operation or automatic operation
A. To select 24 hour operation. the unit will remain on 24 hours a day
B. To select automatic operation. the unit will turn on automatically on dusk, operate through the night and turn off in the morning.

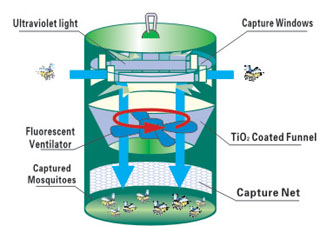

Principle of Captures Mosquitoes
Mosquitoes, even in the dark, can easily access where a person is by sensing carbon dioxide and temperature that he/she sheds.  Also, they react extremely sensitively to near ultraviolet rays.

Using these properties of mosquitoes, M3 mosquito trap can decoy and capture mosquitoes both in bright indoors and in dark outdoors by a tripartite system: HEAT and A CERTAIN WAVELENGTH RAY produced from the mosquito bulbs installed inside, and CARBON DIOXIDE produced when bulbs are radiated onto TiO2 coat.





Decoyed mosquitoes enter the exterminator through the capture windows on the upper parts, and then are strongly drawn into the capture net, on the lower part. Once they are drawn into the capture net, they cannot fly away upwards due to
the strong current of the ventilator. Mosquitoes quickly dehydrate and die. No messy & costly sprays.




Air-Actuated Gate System Prevent captured mosquitoes from escaping.
Our patented gate system employs a butterfly check valve downwind of the motor which is opened by airflow from the fan and closed by counter-balancing weights. The gates are made of ABS material and are entirely maintenance free.

Collection Cage



Installation Instructions:
Unpack unit. Save box for off-season storage. Plug cord into an outdoor outlet or UL-Listed extension cord. For best catch results leave unit on at all times, except when cleaning or servicing. Catch rate activity will be higher at night. For best catch results it is recommended to place unit away from other competing light sources.


Cleaning Instructions:
Switch unit off and unplug before cleaning. Remove the collection chamber/retaining cage with a twisting motion, turning clockwise. Empty insects into trash container and brush off collection chamber/retaining cage (brush included) and fan.
Replace collection chamber/retaining cage with a simple twist.

Important safety Instructions:
1. Always turn unit off and disconnect plug before servicing, cleaning, or changing bulbs.
2. Using a small brush and soapy water, carefully clean the fan and the funnel. Ensure that water is not allowed to enter into the Fan Motor.
3. Collected insects within the unit may contribute to fire, so clean insects from the unit frequently.
4. In order to prolong the life of your device, stand in a dry place when not in operation.
5. Mount product out of reach of children.
6. Keep cord away from heat, oil, or sharp edges.



Purifies air through photocatalysis & Sterilizes sundry bacteria
Using TiO2, ATTENTION-GETTER of ENVIRONMENT PURIFICATION FIELD.
A smoke/insecticide-free mosquito trap which simultaneously purifies air and exterminates mosquitoes has been specially devised. It is absolutely harmless on environment, livestock and pets, for it is insecticide free.

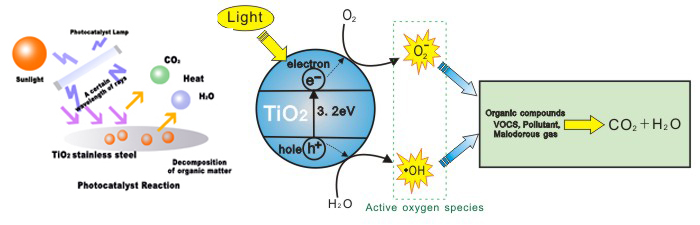

TiO2 Photocatalyst Introduction
The effect of photocatalysis used in TiO2 pays attention in the field of pro-environment.
Titanium dioxide, also known as titania, is the naturally occurring oxide of titanium. TiO2 was approved as a food additive in 1968 by the USA. At present, TiO2 is used in making chocolates and is a totally harmless materials to the human body. Photocatalysis is a disintegration that uses light-energy with TiO2 as a catalyst. TiO2 is not changed so can be used permanently. In case there is a little ultraviolet ray from the sun or lamp, TiO2 purifies air and sterilize ill-smelling molecule by response to organic matter on the surface of TiO2.





Using energy from light, TiO2 creates two oxidation reactants: hydroxyl radicals and superoxide anion which decomposes toxic organic substance by oxidation.
